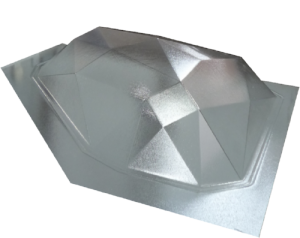

45 deg Steam Stoppers

These Steam Stoppers most 900mm or 1000mm 45 deg (pentagon 5 sided showers) showers, in a corner installation.

steam stopper 45deg

Steam Stopper 45deg

 45 Deg Steam Stopper


The 45deg Steam Stopper is suitable for most 1m x 1m and 900mm x 900mm 45deg corner shower cubicles, many of these 45 deg showers are up to 20 years old but the Steam Stopper will still fit once you have trimmed the edges to suit.



Once you have installed the support brackets (as per instructions) you then need to trim your Steam Stopper to size, I would recommend trimming the back edges first, once the back edges are cut and fit parallel to your walls place the 45 Deg Steam Stopper on the top of the shower and mark around the front edge then cut 3 – 5mm inside your marks, fit the Steam Stopper and the the job is completed.

The 45 deg Steam Stopper will:

♦ Stop Steam from being made in your shower.

♦ Stop Mould from growing

♦ Stop your mirror from misting

♦ Make your paint last longer

♦ Reduce the cleaning of your bathroom

♦ Save power

A fitting service, if you need it, maybe available in your area by Hire A Hubby

Shower Cubicles that suit the 45 Deg Steam Stopper

These are showers we know the 45deg Steam Stopper fits. There maybe other showers in houses we have not been able to check. For you to check, measure the 2 back walls from the back corner to the front edge of your door frame. If it is 840mm or bigger a 45deg Steam Stopper will fit.

2 Wall Corner
Athena Charisma

Clearlite Millennium,

Platinum

Sierra

EngleField Valencia

Henry Brooks 1m x 1m and

900 x 900mm

Newline Danube

Marbella

Saturn
Trent

Plumbing World Oceania
905 x 905mm
Oceania
955mm x 955mm



45 deg Steam Stoppers are not trimmed to size

There are many variations of corner angled showers this Steam Stopper is large enough to cover most.
You will need to trim the Steam Stopper to suit your shower.
Steam Stopper 45Deg




*Please note*ALL 45deg Steam Stoppers will be supplied cut to 995mm x 995mm, (the dome as such is 810mm x 810mm) and the outer edges will need to be trimmed to size to suit your shower.  cutting instructions here.
Click on the image below for a larger version to print and take into your chosen supplier.
SteamStopper 45Deg size


Measuring Steam Stopper 45deg

45 deg Steam Stopper Recap:

  • Dome size 810 x 810mm
  • Minimum Overall cut size 840 x 840mm
  • No Std pre-cut Sizes
  • Untrimmed size  995 x 995mm
