Rectangle Steam Stopper
$299.00

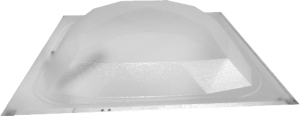

Rectangle Steam Stopper
Designed to fit most rectangle showers, either corner or alcove installations.
This Steam Stopper is suitable for most 750mm x 900mm or 1200mm x 900m Rectangle shower cubicles, both those that are placed in the corner of a room and in an alcove situation.
Once the supporting u-channel are placed in position and the Steam Stopper is trimmed to size, all you need to do is place this Steam Stopper on the top of the shower and slide into the u-channel the job is completed.
A Rectangle Steam Stopper will …
- Stop Steam from being made in your shower.
- Stop Mould from growing
- Stop pealing paint
- Stop your mirror from misting
- Make your paint last longer
- Reduce the cleaning of your bathroom
- Save power
Overall height 185mm
| 2 Wall Corner | 3 Wall Alcove | |
| Clearlite | Sierra | Sierra |
|
|
||
| EngleField | Sapphire | Sapphire Alcove |
|
|
||
| Henry Brooks | 760mm x 900mm | 760mm x 900mm |
|
|
||
| Newline | Rhine Trent |
Rhine Trent |
It is designed to fit all showers between 750 x 1100 through to the 1200 x 1000 showers, including corner or alcove and those with curved doors. It will not matter if your shower has tiled walls or an acrylic liner, has a pivot or sliding door, is in an alcove or is a corner install our Steam Stoppers will fit.
| 2 Wall Corner | 3 Wall Alcove | |
| Biggest Available | 1200 x 1000 | 1200 x 1000 |
|
|
||
| Henry Brooks | 1200 x 900 | 1200 x 900 |
|
|
||
| Henry Brooks | 1200 x 760 | 1200 x 760 |
| Other Showers to be confirmed – these can be trimmed to suit your shower up to 1200 x 1000 | ||
Our 1.2m x 1m or 1200 x 900mm Steam Stoppers can be trimmed to fit many of the 1200 x 900 Curved door Showers.
Click here to purchase Rectangle Showers with curved doors
We developed the dome shape to enable the cutting a curve to match the curved door showers.
We do recommend you buy the rectangle Steam Stopper and trim to a template of your shower as it will then match your door. We have come across quite a few variations and no std curve suits them all.
We also note that the description of R/H or L/H can be confusing
The diagrams below are only a guide
Rectangle Steam Stopper Dome size showing Minimum and Maximum length and width
Need it untrimmed?
When your walls are not square or neither of our pre-trimmed large Rectangle Steam Stopper to fit.
*Please note*
This Steam Stopper will be supplied cut to 1200mm x 1000mm, (the dome as such is 680 x 1050mm). The untrimmed Steam Stopper will need to be trimmed to suit your shower, you will find the cutting instructions here.
Click on the image below for a larger version to print and take into your chosen supplier.
Recap:

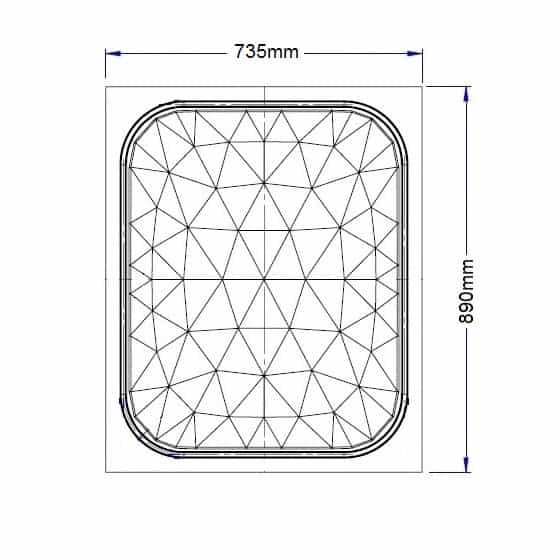

760 x 900 Steam Stopper
- Dome size 820 x 660mm
- Minimum Overall cut size 850 x 680mm
- Max size 930 x 780mm – special order
- Std overall sizes 890 x 735mm
- Measurements are overall including the U-channel and screw head
- Untrimmed size not available
1200 x 900 Steam Stopper
- Dome size 1050 x 670mm
- Minimum Overall cut size 1070 x 700mm
- Max size 1200 x 1000mm
- Std overall sizes 1173 x 735mm
- 1173 x 875mm
- Measurements are overall including the U-channel and screw head
- Untrimmed size 1200 x 1000mm
