Pre-trimmed Steam Stoppers

These fit most from 760 x 900mm through to 1000 x 1200mm showers, in either corner or alcove installations.

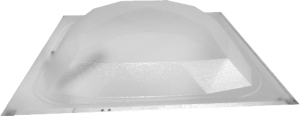

900 x 760 Steam Stopper
1200 x 900 Steam Stopper

Rectangle Steam Stopper

Rectangle Steam Stopper

Rectangle Steam Stopper

900 x 760 to 1200 x 1000

The rectangle Steam Stopper is suitable for most 760mm x 900mm through to 1200mm x 1000mm rectangular showers. Both of those that are placed in the corner of a room and those in an alcove situation with 3 walls.


Once you have installed the supporting brackets in position and the Steam Stopper may need to be trimmed to size (instruction here). Trim if need be or all you need to do is place the rectangle Steam Stopper on the top of the shower and your job is completed, no need to fix to the top of the shower.

The rectangle Steam Stopper will:

♦ Stop Steam from being made in your shower.

♦ Stop Mould from growing

♦ Stop your mirror from misting

♦ Make your paint last longer

♦ Reduce the cleaning of your bathroom

♦ Save power


A fitting service maybe available in your area by Hire A Hubby


*Please note* Your Steam Stopper may need to be trimmed to size to suit your shower, you will find the cutting instructions here.

Shower Cubicles that the Rectangle Steam Stopper suits

Steam Stopper 760x900

Rectangle Steam Stopper

Overall height 185mm

2 Wall Corner 3 Wall Alcove
Clearlite Sierra Sierra

EngleField Sapphire Sapphire Alcove

Henry Brooks 760mm x 900mm 760mm x 900mm

Newline Rhine Trent Rhine Trent

1200 x 900 Steam Stopper

2 Wall Corner 3 Wall Alcove
Biggest Available 1200 x 1000 1200 x 1000

Henry Brooks 1200 x 900 1200 x 900

Henry Brooks 1200 x 760 1200 x 760
Other Showers to be confirmed –
these can be trimmed to suit your shower up to 1200 x 1000

Need it untrimmed?

When your walls are not square or neither of our pre-trimmed Rectangle Steam Stopper to fit.
1200 x 1000 Steam Stopper

*Please note*
This Steam Stopper will be supplied cut to 995mm x 995mm, (the dome as such is 680 x 1050mm). The untrimmed Steam Stopper will need to be trimmed to suit your shower, you will find the cutting instructions here.
Click on the image below for a larger version to print and take into your chosen supplier.
SteamStopper lge rectangle size


Measuring Steam Stopper

Recap:

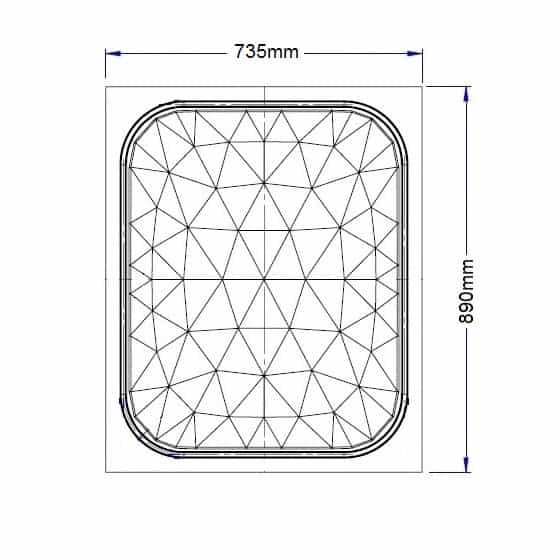

760 x 900 Steam Stopper

  • Dome size 820 x 660mm
  • Minimum Overall cut size 850 x 680mm
  • Max size 930 x 780mm – special order
  • Std overall sizes  890 x 735mm
  • Untrimmed size not available

1200 x 900 Steam Stopper

  • Dome size 1050 x 670mm
  • Minimum Overall cut size 1070 x 700mm
  • Max size 1200 x 1000mm
  • Std overall sizes  1173 x 735mm
  •                                1173 x 875mm
  • Untrimmed size  1200 x 1000mm
